Industrial-grade continuous mesh belt dryer
High efficiency and energy saving
Customizable
Exported to over 90 count
Food Dryer Machine
Your Professional Food Dryer Machine Manufacturer!
Shanghai Shanqiao Machinery Equipment CO.,Ltd, established in 2005, specializes in the research, development, and manufacturing of drying equipment. The company has consistently dedicated itself to offering customers competitive products and comprehensive solutions, along with a full spectrum of technical services and support.
-
![Mesh Belt Dryer]()
-
![Industrial Fruit Dryer Machine]()
Industrial Fruit Dryer MachineFirstly, the Fruit Dryer Machine is incredibly time-saving. Drying fruits with the help of this machine is a breeze and eliminates the need for constant monitoring and turning. The machine...read more -
![Fruit Drying Machine Use Steam]()
Fruit Drying Machine Use SteamSteam dryers are an innovative solution for drying fruits and vegetables in processing plants, where steam is readily available. These dryers use steam to dry the produce, resulting in a more...read more -
![Agriculture Drying Machine]()

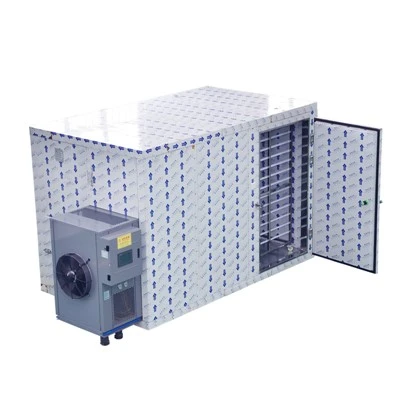

Agriculture Drying MachineThe development of modern technology has brought a revolution in the field of agriculture. Agriculture has become more mechanized, specialized, and scientific, increasing the production capacity...read more -
![Industrial Vegetable Dehydrator]()
Industrial Vegetable DehydratorThe Vegetable Dryer Machine is an essential tool for anyone who wants to ensure their vegetables are cleaned and stored properly.read more -
![Industrial Herb Dehydrator]()
Industrial Herb DehydratorHerb Dryer Machine is a powerful and efficient device that can help you dry various types of herbs quickly and easily.read more -

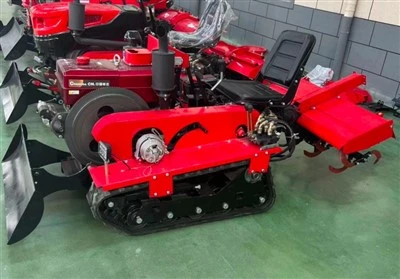

![Small-sized Cultivation]()
Small-sized CultivationAs a vital tool in agriculture activities, cultivation machines have been widely used by farmers all over the world. Among them, the small-sized cultivation machine has become increasingly popular...read more -
![The Small Household And Commercial Dryer]()

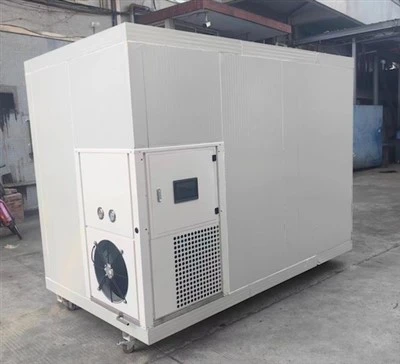

The Small Household And Commercial DryerThe small household and commercial dryer is an innovative and efficient solution for drying fruits and vegetables in a cost-effective manner. With the capacity to dry up to 200 kg of produce per...read more -
![Water Hyacinth Dryer]()

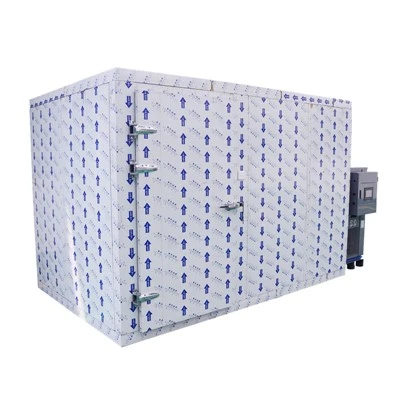

Water Hyacinth DryerWater hyacinth is a beautiful aquatic plant known for its purple flowers. However, it is also a notorious invasive species that can clog up waterways and disrupt ecosystems. To tackle this...read more -
![Continuous Mesh Belt Drying Equipment For Various Products]()
Continuous Mesh Belt Drying Equipment For Various ProductsDrying type :Drying and dehumidificationread more
Drying humidity range:30-75℃ -
![One Of The Benefits Of Using A Ginger Drying Machine]()
One Of The Benefits Of Using A Ginger Drying MachineDrying ginger is a fantastic way to preserve the flavor and nutrients of this versatile root. After being washed, the ginger can be sliced and dried using a variety of methods, including a belt...read more -
![Garlic Drying Machine]()
Garlic Drying MachineOur pressure spray dryer is equipped with a high-pressure pump and top nozzle to ensure consistent and effective atomization, optimizing the spray drying and cooling process.read more
Why Choose Us
Quality Control
Our equipment strictly complies with CE and ISO certification standards to ensure that product quality reaches international standards, and has won wide acclaim from domestic and foreign customers.
Sales Market
Our drying equipment has been successfully exported to more than 90 countries and regions around the world, covering important markets such as Russia, Central Asia, Brazil, the United States, European countries and the Middle East.
Quality Service
We provide customers with comprehensive after-sales service, including but not limited to machine installation, commissioning, operation training and employee skills improvement training. We also provide 24-hour telephone support and remote technical assistance to ensure that customers have no worries during use.
Professional Team
We have a dedicated R&D department, design department and engineering department. The R&D department is not only committed to new product development, but also responsible for performance optimization and technical upgrades of existing products to improve equipment efficiency and simplify operating procedures.
Customized Food Dryer Machine
We provide customized food dryer machine manufacturing solutions to meet your needs. Main customizable options:
● Capacity
● Temperature control system
● Material
● Dimensions
● Shelves
● Door opening direction
Types of Food Dryer Machine
Fruit Dryer Machine
Fruit dryer machine can dry the moisture on the surface of the food and retain its original color and taste. It works by using various methods such as heat, air circulation, or vacuum technology to gradually reduce the water content in the fruits. The machine is made of high-quality stainless steel, which is anti-corrosive and beautiful.
Vegetable Dryer Machine
A vegetable dryer machine is a device used to dehydrate fresh vegetables, fruits, and herbs to preserve their freshness and extend their shelf life. The machine works by removing moisture from the product through a process of heating and ventilation.
Herb Dryer Machine
Herb dryer machine is a kind of continuous production drying equipment, the main heating way has electric heating, steam heating, and hot air heating. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.
Spice Dryer Machine
The spice dryer machine adopts the principle of reverse carnot cycle. It absorbs low-temperature heat energy in the air, and becomes high-temperature heat energy after efficient heat collection and integration of the heat pump system, which is transported to the drying room to circulate heating and drying the spice, and the hot and humid air in the drying room is directly discharged to the outside of the drying room through the dehumidifier.
Air Dehydrator
An air dehydrator is a small electrical appliance that uses a fan and an electrical element to dry food by circulating hot air over it. The air movement and heat evaporate moisture from the food, which can be fruits, vegetables, or meats.
Food Dryer Machine Technical Data
|
Model |
CT-C-0 |
CT-C-I |
CT-C-II |
CT-C-Ⅲ |
CT-C-IV |
|
Capacity of each batch |
60kg |
120kg |
240kg |
360kg |
480kg |
|
Power of Fan |
0.45kw |
0.45kw |
0.9kw |
1.35kw |
1.8kw |
|
Consumption of steam |
5kg/h |
18kg/h |
36kg/h |
54kg/h |
72kg/h |
|
Total Power |
9kw/h |
15kw/h |
30kw/h |
45kw/h |
60kw/h |
|
Thermal area |
5m2 |
20m2 |
40m2 |
80m2 |
100m2 |
|
Air volume Temperature used |
3450m3/h ±2°C |
3450m3/h ±2°C |
6900m3/h ±2°C |
10350m3/h ±2°C |
13800m3/h ±2°C |
|
Quantity of trays |
24 |
48 |
96 |
144 |
192 |
|
Overall Dimension(mm) |
1460*1000*1750 |
2300*1200*2300 |
2300*2200*2300 |
2300*3220*2000 |
4460*2200*2290 |
|
Baking vehicles |
1 |
2 |
4 |
6 |
8 |

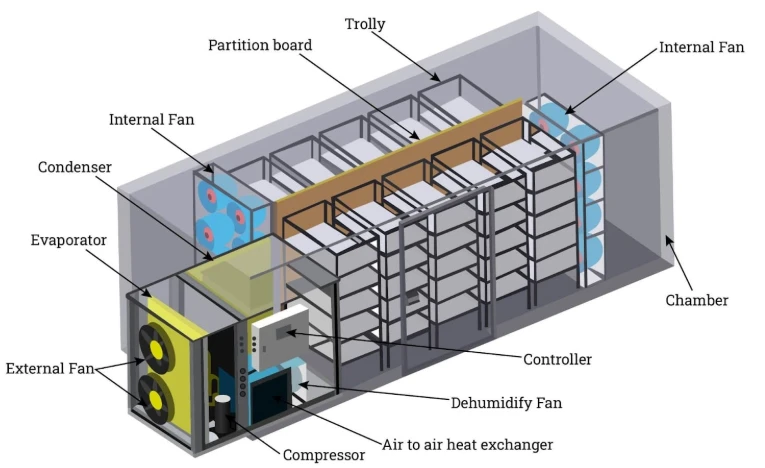

Food Dryer Machine Structure
Features of Food Dryer Machine
● Most of the hot air is circulated in the drying oven. The thermal efficiency of the drying oven can reach about 70%.
● Low noise, reliable and safe operation, temperature-controlled, easy installation and maintenance.
● Equipped with adjustable air divider plates inside the oven, materials can be dried evenly.
● The drying tray is made of stainless steel, easy to move, durable, and convenient to clean.
● The heat source can be chosen from steam and electricity. The electricity heating way is recommended due to more convenient and secure than the steam.
Precautions for Using Food Dryer Machine
Proper ventilation and airflow:
One key safety factor in food dryer machines is proper ventilation and airflow. Food dryer machines are designed with vents to allow the escape of moisture-laden air. It is crucial not to cover these vents or obstruct the airflow within the appliance. Blockage can lead to inadequate dehydration and even the growth of bacteria or mold. Always follow the manufacturer's instructions regarding setup and positioning of the food dryer machine for optimal ventilation.
Proper temperature settings:
Maintaining the appropriate temperature while dryer is crucial to ensure food safety. Most food dryer machines come with adjustable temperature controls, allowing you to set the desired temperature for different foods. It's important to refer to specific temperature guidelines for different types of foods.
Precautions:
Although food dryer machines are generally safe to use, there are a few risks to consider. One common concern is the possibility of overheating. To prevent this, always supervise the food dryer machine while in operation and never leave it unattended for long periods.
Packaging and Shipping
|
Packaging |
Wooden box, film, customizable |
|
Transport |
Road transport, rail transport, sea transport, air transport |
Our Working Process
Machine Inspection
We have set manufacture factories both at home and abroad to give a direct and close way for customers to see the machine that he will finally receive. Plus, clients can bring raw materials to test the machine performance on site.
On-Site Installation & Adjustment
When the drying machine arrives at your work sites, we will designate 1-2 engineers for installation.
Systematic Training
After the dryer is installed and runs smoothly, our engineer will offer systematic training to the operators and ensure they are familiar with the machine operation and and maintenance of the machine.
After-Sales Service
Contact our after-sales team for machine inquiries. We offer phone and remote technical support. On-site engineer dispatched if necessary, field engineers can be dispatched.
Our Certificate
Video
Vegetable drying equipment
Drying chrysanthemums and other flowers
Dryer drying cassava chips
